Accurate and reliable measurement result

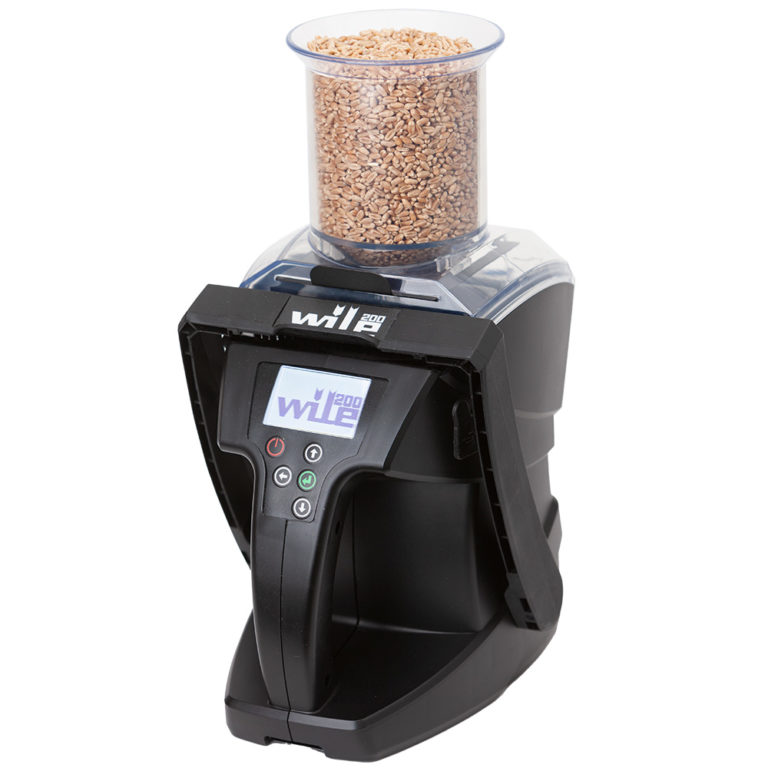

The W200 moisture meter features a sample size that is clearly larger than on other grain moisture meters. The large sample size provides a more comprehensive overview of the grain being measured, avoiding situations where random green kernels distort the result. This handy meter with its clear backlit display guides the user and produces reliable measurement results even if applied by less experienced operators.

Applying weight compensation, the meter balances the differences within grain types, as well as structural variations in kernels caused by the change of season.

Also measures the test weight

In addition to moisture measurement results, W200 also displays the current test weight: you will no longer need separate test weight scales.

Excellent ease of use

Using a Wile 200 meter does not require force: just fill the transparent cup attached to the top of the meter, release the grain sample into the measuring chamber, and level the sample with the patented integrated levelling system. Excess grain falls neatly into the trough around the measuring cup.

Measuring with W200 is also fast: the meter does not require cleaning between measurement operations, as opposed to, for instance, crushing meters.

The set includes:
  • Meter
  • Carrying case and carrying strap
  • Batteries
  • USB-cable
  • Operating manual.

The measurement range varies between 1% and 38%, depending on the grain and the market. The typical range for cereal grains varies from 5% to 30%, and for oil seeds – from 2% to 25%. Repeatability of the measurement results: ±0.3% points in normal moisture range for stored grain.

Important! The scale settings of Wile meters are adjusted to match the common standard grain types as closely as possible. However, properties of grain are likely to vary due to, for instance, varying growing conditions or new species. Therefore, we advise you to always make sure before the harvesting that with the grain type you handle, the readings of your meter match the readings obtained in oven-testing. Always take several samples and use their average as the result.

Tip! You will get the best measurement accuracy for your grain if the temperature of the meter and the grain is within the range of 16-32˚C. The temperature of the meter and grain have to match each other as closely as possible, and it is advisable to store the sample in a container that is as air-tight as possible. In order to obtain a reliable result, the sample has to be representative.

Please note that with subsequent software updates both the number of measured grain types as well as the moisture measurement range could possibly change.

PRODUCT INFORMATION

Back-lit guiding LCD display – Yes
USB-port for scale upgrading – Yes
Automatic temperature compensation – Yes
Patented, integrated sample leveling system – Yes
Automatic averaging – Yes
Automatic power OFF – Yes
Low battery voltage alert – Yes
Operating temperature range – 5-45°C
Display resolution – 0.1% points
Batteries – 4 x AA
Warranty – 2 year

MEASURED GRAIN SPECIES IN FINLAND

Measured grain – Moisture content measurement range
Wheat 5-30%       Barley 5-30%        Oats 8-30%          Fodder oats 5-36%        Rye 6-36%         Turnip rape 1-27%           Rapeseed 2-30%            Timothy-grass 6-26%
Peas 6-35%         Red clover 6-37%          White clover 6-37%          Caraway 5-26%           Buckwheat 5-26%             Broad bean 6-30%            Beans 5-22%
Spelt 8-30%       Linseed 3-20%          Meadow fescue 6-32%          Tall fescue 6-33%        Hemp 4-18%
